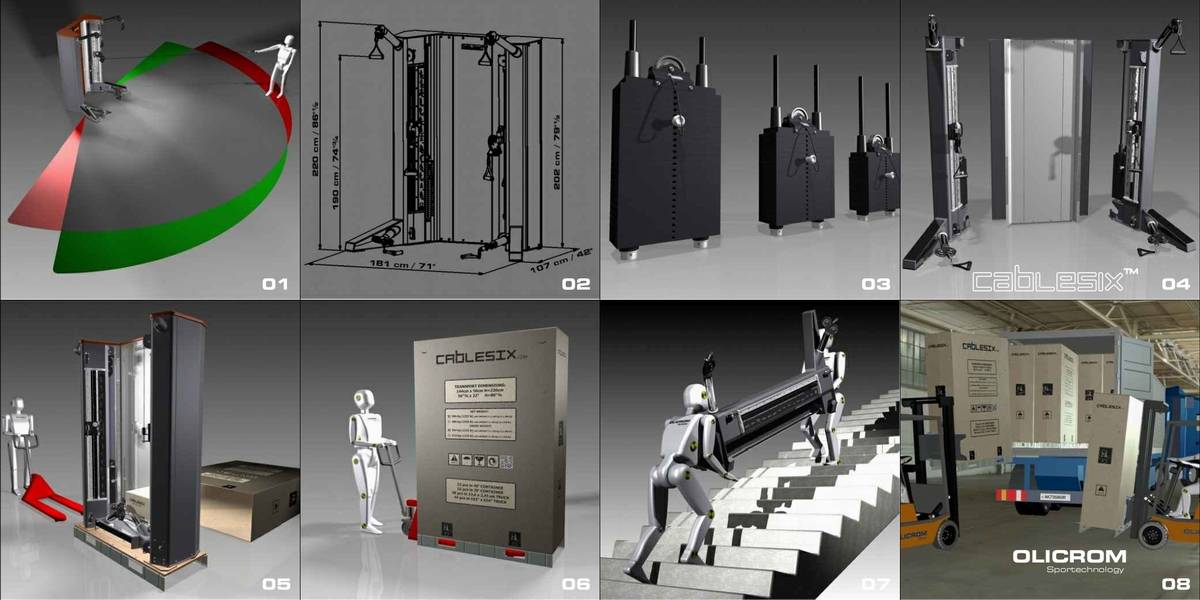

01. Live working area
Cable lifting length ratio 4:1
80 kg / 176 lbs dual weight stacks, length 490 cm / 193"
120 kg / 264 lbs dual weight stacks, length 452 cm / 178"
156 kg / 344 lbs dual weight stacks, length 404 cm / 159"
02. Footprint
Length 107 cm / 42"
Width 181 cm / 71"
Height 220 cm / 86"½
Net Weight:
632 kg / 1393 lb. with Weight Stacks 2x156 kg / 344 lb.
560 kg / 1233 lb. with Weight Stacks 2x120 kg / 265 lb.
480 kg / 1058 lb. with Weight Stacks 2x 80 kg / 176 lb.
03. Weight stacks
80 kg / 176 lbs dual weight stacks, 1 kg / 2,2 lbs incremental weight-plate. Handle lifting load 20 kg / 44 lbs.
120 kg / 264 lbs dual weight stacks, 1,5 kg / 3,3 lbs incremental weight-plate. Handle lifting load 30 kg / 66 lbs.
156 kg / 344 lbs dual weight stacks, 1,5 kg / 3,3 lbs incremental weight-plate. Handle lifting load 39 kg / 86 lbs.
04. Testing
Carefully load tested to ensure that can withstand capacities surpassing normal usage. EN-957 Safety Design Standards:
-component spacing between moving parts
-guarding of weight stacks and pulleys
-edge and corner sharpness of components
-stability to floor surface during operation
-structural testing to insure product durability
-warning labels and instructional signage
-documentation of design specifications
05. Installation
Completely pre-assembled and tested prior to delivery. Unit delivered with arms and feet disassembled.
06. Packaging
Wrapped and protected inside a corrugated box designed to minimize any damage during shipping.
Length 56 cm / 22"
Width 144 cm / 56”¾
Height 220 cm / 86”¾
Shipping Gross Weight
665 kg / 1466 lb. with Weight Stacks 2x156 kg / 344 lb.
594 kg / 1310 lb. with Weight Stacks 2x120 kg / 265 lb.
515 kg / 1133 lb. with Weight Stacks 2x 80 kg / 176 lb.
07. Disassembling
Disassembled one column unit weight 98 kg / 216 lbs without weight stack and arms.
